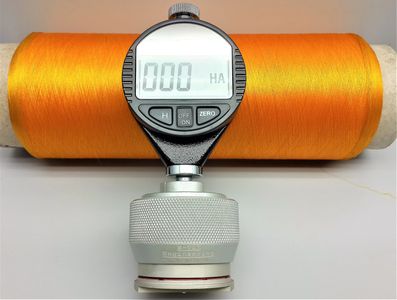

Digital Yarn Package Shore Hardness Tester, Yarn Beam Hardness Tester, Yarn Cone Hardness Tester

Yarn Package Shore Hardness Tester

Digital Yarn Package Shore Hardness Tester, Yarn Beam Hardness Tester, Yarn Cone Hardness Tester are used to check the hardness of yarn packages such as cone, beam, etc. Hardness may be defined as a material's resistance to permanent indentation. Equipment at B-Tex Engineering is manufactured using high quality and high grade raw materials, and is tested for quality assurance before delivery. Moreover, all testing instruments manufactured by us are covered by warranty. The tester is typically used to measure the hardness in polymers, elastomers and rubbers. There are several scales of durometers, used for materials with different properties. The two most common scales, using slightly different measurement systems are the ASTM type.


Digital Yarn Package Shore Hardness Tester with spring pressure calibration system to use as specific pressure device will always give close results with same pressure. We have 2.5 mm, 5.0 mm and 10 mm ball pin sizes for different yarn packages.


Features of Digital Yarn Package Shore Hardness Tester:

Very useful for spinning mills

Latest design with elegant look.

Handy, easy to operate.

Duly packed in a plastic case for safety.

With calibrated precision digital reading in degree shore.

Smooth precision-engineered components for exceptional performance.

Supplied with calibration & inspection certificates

Easy access to sample table.


Specifications of Digital Yarn Package Shore Hardness Tester:

Measuring Range: 0-100 HS

Ball diameter: 2.5 mm / 5 mm / 10 mm

Depth: 2.5 mm

Instrument’s weight: 550 gms.


How Digital Yarn Package Shore Hardness Tester:

Just put instrument on the cone, beam or any package of yarn of fabric.

Press upto the marking line for equal pressure eachtime and take more than 10 readings from different areas.


Minimum 10 years part availability assurance from the date of Invoice.
